General X-ray Series

DK's General X-ray Series is providing with the high quality images
based on reliable and stable system.

General X-ray Systems 컨텐츠 영역

General X-ray Systems
Handy-Rad SE
Contact
global@dk.co.kr

Handy-Rad SE

Overview of Products

Handy-Rad SE is Inverter Type Radiographic X-ray System. It is general diagnosis X-ray system, it appropriate image is provided accordance with diagnostic object, also this system can be combined with various configuration by user’s purpose.

  • Micro-Multi Processor control with OneTouch Panel
  • Free voltage adjustment
  • Compact Size, Minimum Installation Space
  • Household Power Supply Possible with Handy-RadII

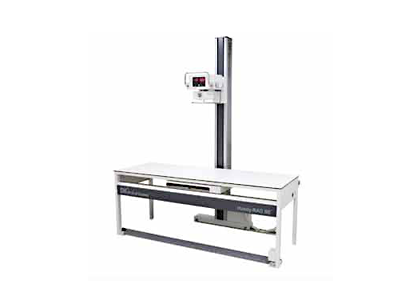

Handy-Rad SE Radiography System

Handy-Rad SE is inverter type of Radiographic X-ray system. Handy-Rad SE is configured for Flexibility with power supply, and it is compact system is designed to save space while minimizing installation works.It is equipped with Micro-Multi Processor Control to easy operation.

X-ray high voltage generator
Control method High frequency inverter
Tube voltage setting range 0.3-180mAs
Tube mAs setting range 0.32 – 100mAs (26step)
Anatomical programs Easy-To-Set 288 Anatomic Programs
Display LED display
X-ray Tube Support unit
Focus movement Vertical travel(focus-floor distance) 940-1120mm
Operation : Manual, Electromagnetic lock
Longitudinal travel(along the guide rail) 1120mm
Operation : Manual, Electromagnetic lock
X-ray tube rotations on the horizontal axis ±90˚
Product Information
  • Manufacturer : DK Medical Systems
  • Origin : Made in Korea
  • Use Department : Radiology
