General X-ray Series

DK's General X-ray Series is providing with the high quality images
based on reliable and stable system.

General X-ray Systems 컨텐츠 영역

General X-ray Systems
Accuray D5/D6
Contact
global@dk.co.kr

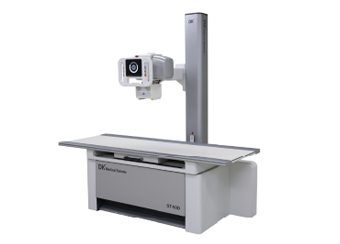

Accuray D5/D6

Overview of Products

Accuray D5/D6 is general diagnosis X-ray system, it appropriate image is provided accordance with diagnostic object, also this system can be combined with various configuration by user’s purpose.

  • High Frequency Inverter System
  • High level of Safety and Efficiency
  • User Convenience with APR Function built
  • Easy-to-Use Operation with One-Touch button , Ultralight and Compact
High Frequency AccuRay Series 이미지

High Frequency AccuRay Series

AccuRay-Series is equipped with High Frequency Multi Processor Control. As it has the optimal conditions
and self-diagnosis programs, it stably operates in the best condition for X-ray and provides with High Quality images.
It is easily controlled by value, position, and other condition. Also 216 steps of APR is equipped and it is possible to diagnosis by various type of condition

High Frequency X-Ray Generator

This High Frequency Inverter Produces low ripple tube voltage and high x-ray quantum efficiency.
The Frequency is variable according to load conditions.

A stable X-ray out is achieved even with increasing tube currents and various condition.

With High Frequency way, it can minimize a rate of retaking under patient movement, and reduce the time for diagnosis. It stably operates in the best condition for X-ray and provides with High Quality images.

System AccuRay D5 AccuRay D6
Radiography kV 40-125kV 40 – 125kV
- 40 – 150kV
Radiography mA 10-500mA 10 – 630mA
Exposure Time 0.001 ~ 10sec 0.001 ~ 10sec
Option DAP, AEC, DI DAP, AEC, DI

Safe and User-Friendly Functions

AccuRay-Series has Various User-Friendly functions and Self-Protection functions for improving user’s operation efficiency and safety.

User-Friendly Function Self-Protection Function
Micro Weight and sized One-Touch Control Button
APR(Anatomic Programing Radio Graphic) function
Self-Error Diagnosis and Alarm
Auto Line-up recovery by auto acting a close-circuit of mA & kV Safety Circuit for blocking overflow to a Tube filament
Product Information
  • Manufacturer : DK Medical Systems
  • Origin : Made in Korea
  • Use Department : Radiology

DK Medical Systems is suggesting various models of Tables. Tube Supporters and bucky stand for satisfying customers' needs

Radiographic Table

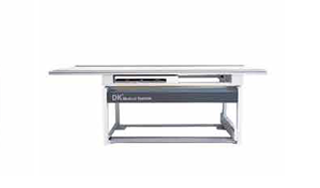

6 Way Table
Model : TE-90

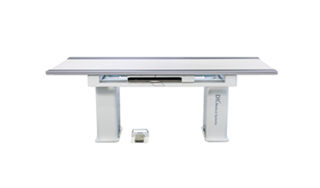

4 Way Table
Model : TF-90

4 Way Table
Model : TF-32N

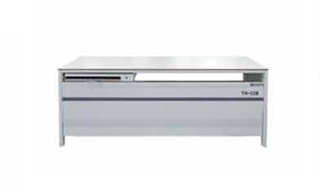

Fixed Table
Model : TH-22B

Tube Support

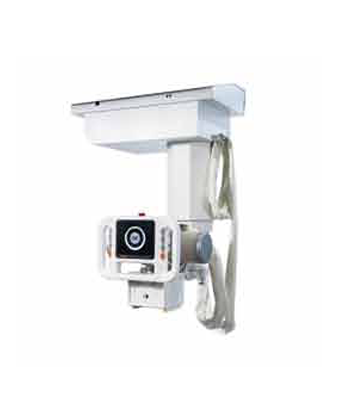

Ceiling type Tube Suspension
Model : ELIN-T3 Plus

Floor type Tube Suspension
Model : SF-90

Bucky Stand

Model : VB-20

Model : VB-90

Integrated System

Model : VB-20

Model : ST-90D
