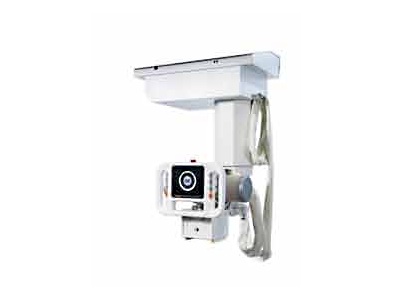

AccuRay 525R/603R/ 630C/1000C

Overview of Products

AccuRay 525R/603R/ 630C/1000C is general diagnosis X-ray system, it appropriate image is provided accordance with diagnostic object, also this system can be combined with various configuration by user’s purpose.

High Frequency Inverter System
High level of Safety and Efficiency
User Convenience with APR Function built
Easy-to-Use Operation with One-Touch button , Ultralight and Compact

Features
Options

High Frequency AccuRay Series

AccuRay-Series is equipped with High Frequency Multi Processor Control. As it has the optimal conditions
and self-diagnosis programs, it stably operates in the best condition for X-ray and provides with High Quality images.
It is easily controlled by value, position, and other condition. Also 216 steps of APR is equipped and it is possible to diagnosis by various type of condition

High Frequency X-Ray Generator

This High Frequency Inverter Produces low ripple tube voltage and high x-ray quantum efficiency.
The Frequency is variable according to load conditions.

A stable X-ray out is achieved even with increasing tube currents and various condition.

With High Frequency way, it can minimize a rate of retaking under patient movement, and reduce the time for diagnosis. It stably operates in the best condition for X-ray and provides with High Quality images.

System	AccuRay-525R	AccuRay 603R	AccuRay 630C	AccuRay 1000C
Radiography kV	40-125kV	40 – 125kV (option : 150kV)	40 – 150kV	40 – 150kV
Radiography mA	10-500mA	10 – 630mA	10 – 630mA	10 – 1000mA
Exposure Time	0.004 ~ 10sec	0.001 ~ 10 sec	0.001 ~ 10sec	0.001 ~ 10sec
Option	DAP, AEC	DAP, AEC	DAP, AEC, DI	DAP, AEC, DI

Safe and User-Friendly Functions

AccuRay-Series has Various User-Friendly functions and Self-Protection functions for improving user’s operation efficiency and safety.

User-Friendly Function	Self-Protection Function
Micro Weight and sized One-Touch Control Button APR(Anatomic Programing Radio Graphic) function	Self-Error Diagnosis and Alarm Auto Line-up recovery by auto acting a close-circuit of mA & kVp Safety circuit for blocking overflow to a Tube filament
